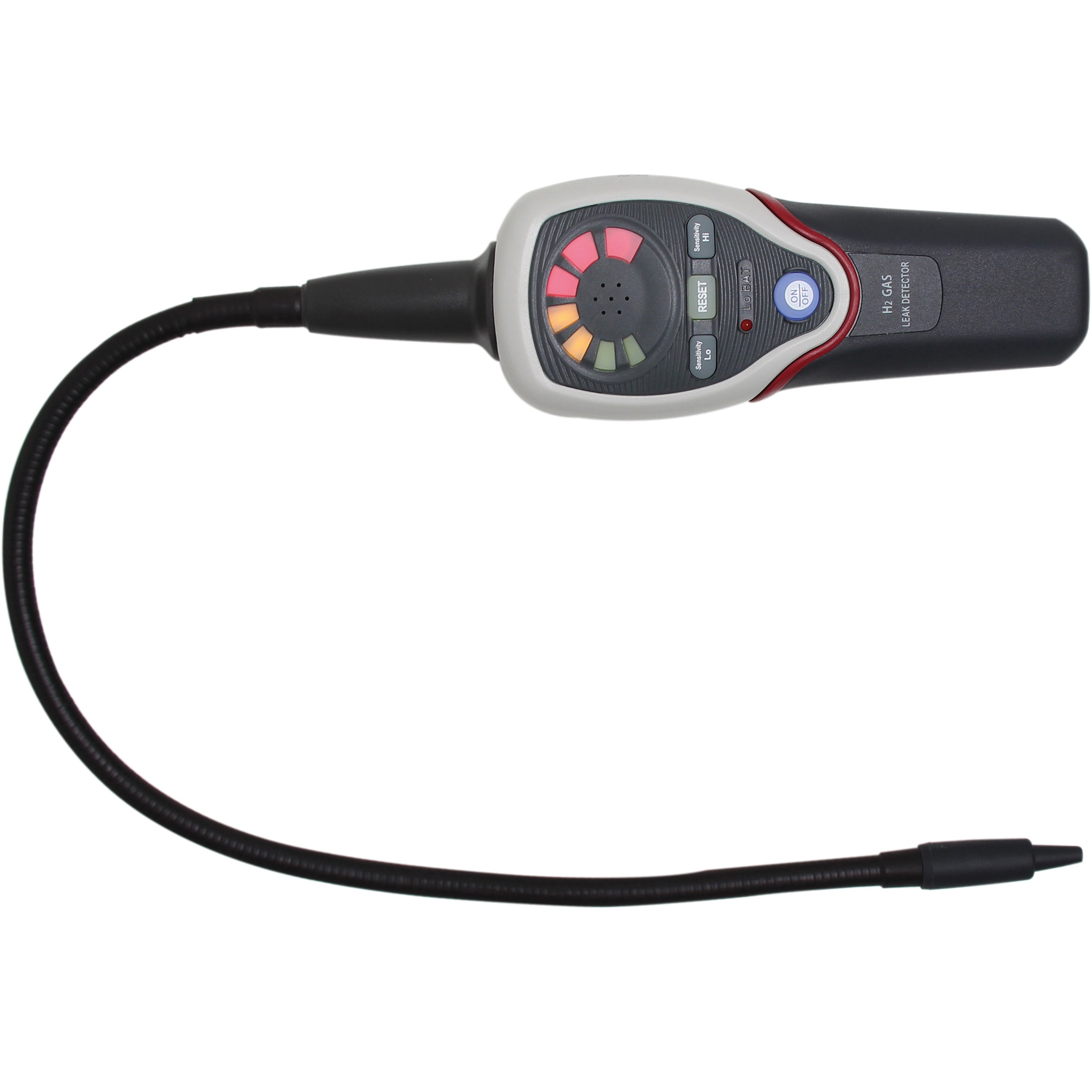

Forming Gas Leak Detector

• This Forming Gas Leak Detector is specifically designed for leakage testing in air conditioning systems that are filled with forming gas (5% hydrogen and 95% nitrogen) for testing purposes. Thanks to its advanced digital signal processing and semiconductor sensor, it ensures quick, accurate, and reliable leak detection.
• The detector features a tricolor LED bar and an audible buzzer for clear and immediate alerts. Sensitivity is adjustable, allowing precise detection down to less than 5 ppm of hydrogen gas. The device automatically compensates for background gas concentrations, enhancing its accuracy.
• Its flexible 40 cm stainless steel probe reaches tight spaces easily, making it ideal for HVAC technicians and automotive service. It includes a microprocessor-controlled system, a fast 45-second warm-up time, and a 7-hour battery life under normal use.
• Additional smart features include automatic power-off, low battery indication, and a compact and lightweight design for portability.

Key Features

• For testing systems filled with 5% H₂ + 95% N₂ (forming gas)

• Highly sensitive: detects concentrations < 5 ppm

• Tricolor LED bar and buzzer alarm

• Adjustable sensitivity

• Semiconductor gas sensor

• Microprocessor control with digital signal processing

• Automatic zeroing and ambient compensation

• 40 cm flexible stainless steel probe

• Warm-up time: ~45 seconds

• Battery life: ~7 hours (normal use)

• Operating temperature: 0–40°C

• Auto power-off and low battery indicator
